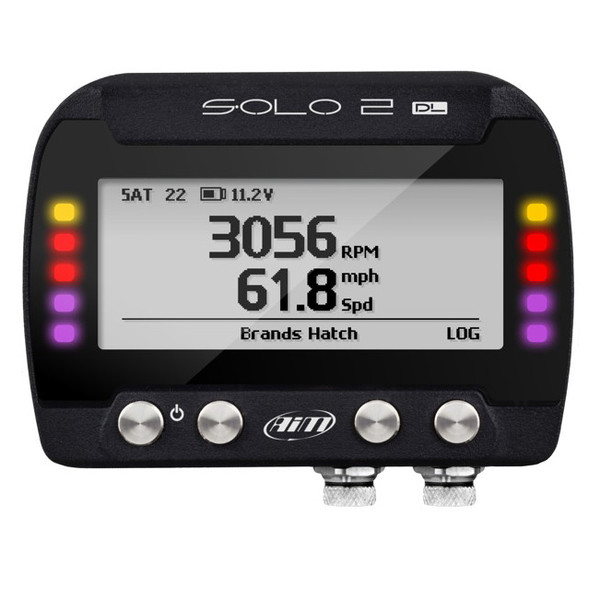

AiM Solo 2 DL

AiM

Write a Review
$799.00
SKU:
AIM-SOLO2-DL
Adding to cart… The item has been added

Product Overview


  • Lap times
  • Sector times
  • Position and vehicle speed
  • 3D acceleration and gyro
  • ECU data: you can select the protocol of your car/bike among thousands of pre-defined protocols, or easily develop your own. CAN, K-Line or RS232 connections.
  • Digital RPM from the primary of the coil (150-400V) or from a square wave (8-50V)
  • CAN expansions: Lambda controller LCU1S, analog inputs ACC2, professional motorsport camera SmartyCam 3



Lap Times and Sector Times

Solo 2 DL features an internal, high precision, 25 Hz, 4 constellations GPS receiver and an internal database including information about thousands of tracks all over the world: just switched ON, it automatically recognizes the track and gets the information about the Starting Line Position and the Time Zone. The precision of the calculated Lap Times is 1/100 of second.

Position and speed on track​

Position and speed on track are recorded 25 times per second.
Thanks to the four navigation satellite systems (GPS, GLONASS, BeiDou, Galileo) with global coverage that Solo 2 DL manages, the precision is generally under 0.5 mt.

3D Accelerations and Gyro

The inertial platform at 100 Hz gives the possibility to calculate roll, pitch and yaw.

Predictive Lap Time

Based upon:

Best lap of the day

Best lap of the session

Previous lap

User reference lap

Types of tests:

Speed races in a closed/open circuit |  Performance tests
Choose the type of performance you like to evaluate, selecting:

  • 0-60 mph
  • 60-0 mph
  • 0-100 Km/h
  • 0-160 Km/h

Distance

  • 1/8 miles
  •  1/4 miles
  •  100 m
  • 150 m
  •  400 m
  •  1000 m



After test on screen analysis

Solo 2 DL shows the most important information during your test, and features a powerful data analysis on the screen when you arrive at the box.

Solo 2 DL in-depth analysis on RaceStudio 3

The professional RaceStudio 3 software lets you analyze your data. It offers all the features for evaluating every possible aspect of your performance.

ECU connection

Choose the right protocol for connecting the Solo 2 DL to your engine among thousands of protocols available.
In case the protocol for your vehicle is not available in our huge database, you can anyway easily develop it thanks to the "ECU Driver Builder" feature, available in our RaceStudio 3 software.
